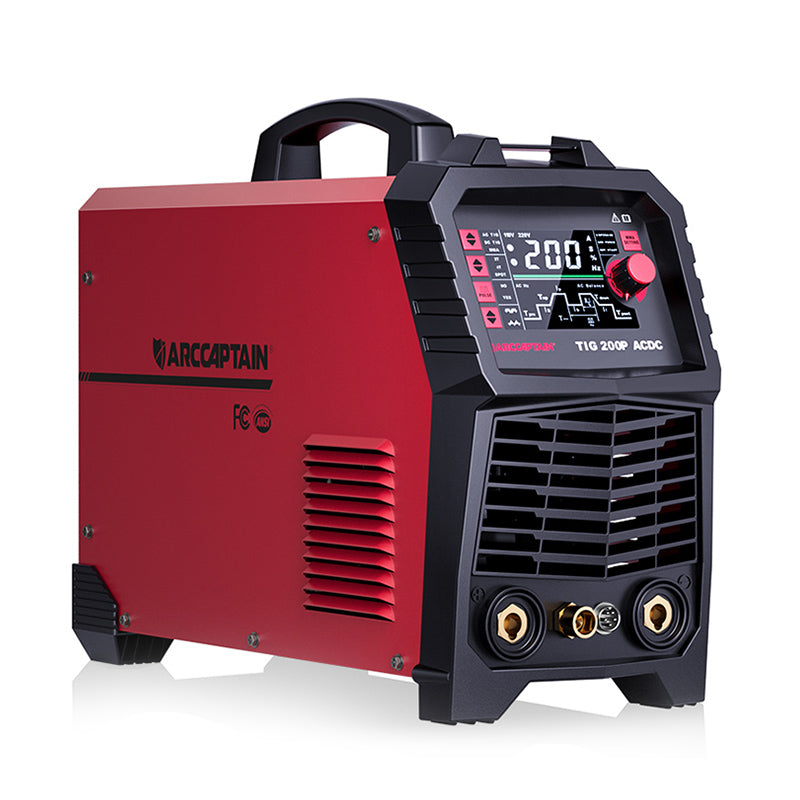

Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder
Couldn't load pickup availability
ARCCAPTAIN TIG200P AC/DC Pulse Welder – Precision Meets Power
Professional-Grade Versatility: Weld aluminum, steel, stainless steel, copper, and more with ease. The TIG200P supports AC/DC TIG (with adjustable square/triangle/pulse waveforms) and Stick welding up to 160A, perfect for delicate projects or heavy-duty repairs.
- Start welding in a flash: arc ignition speeds up to 5x faster (40ms vs. 200ms) with a 99.99% success rate
- Reduced tungsten damage and ultra: stable arc for cleaner, stronger welds
- Digital control ensures whisper: quiet operation and consistent performance

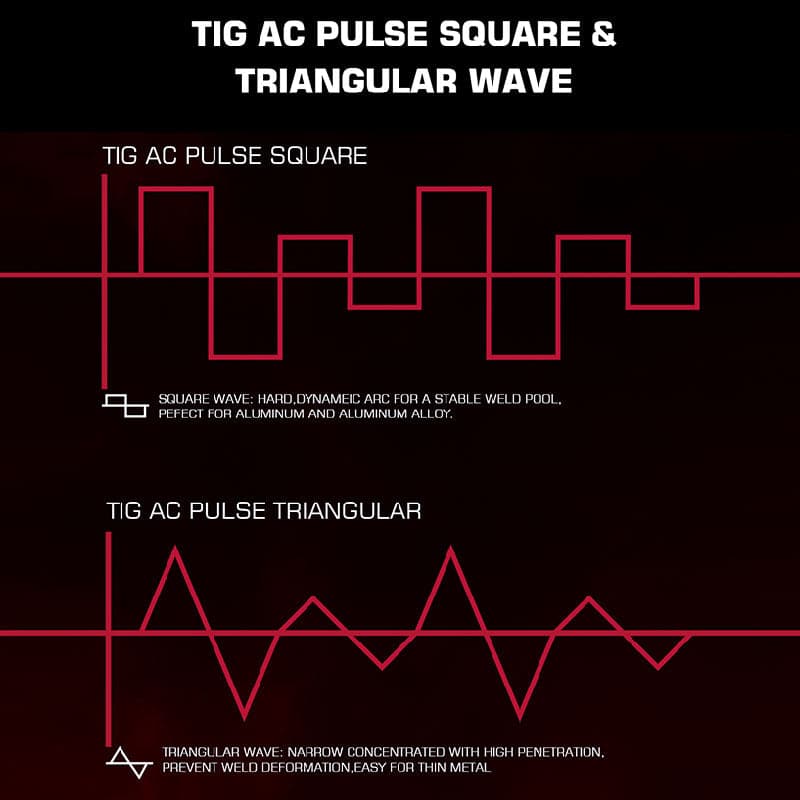

Smart Waveforms for Flawless Results

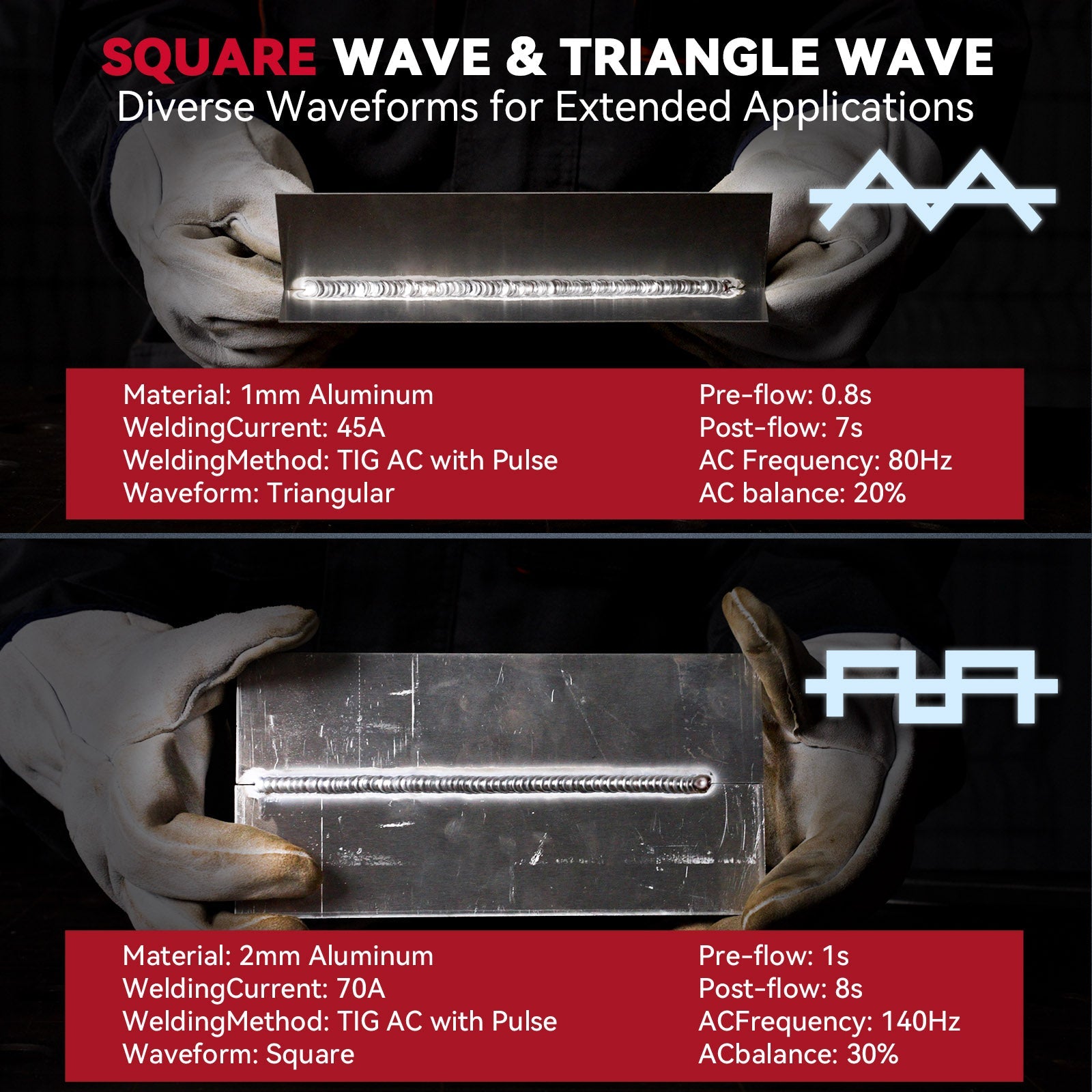

- Pulse/Square/Triangle modes prevent burn-through, minimize warping, and create pro-quality bead finishes
- Square wave AC crushes aluminum oxide for cleaner welds and better arc control
Built for Real-World Convenience

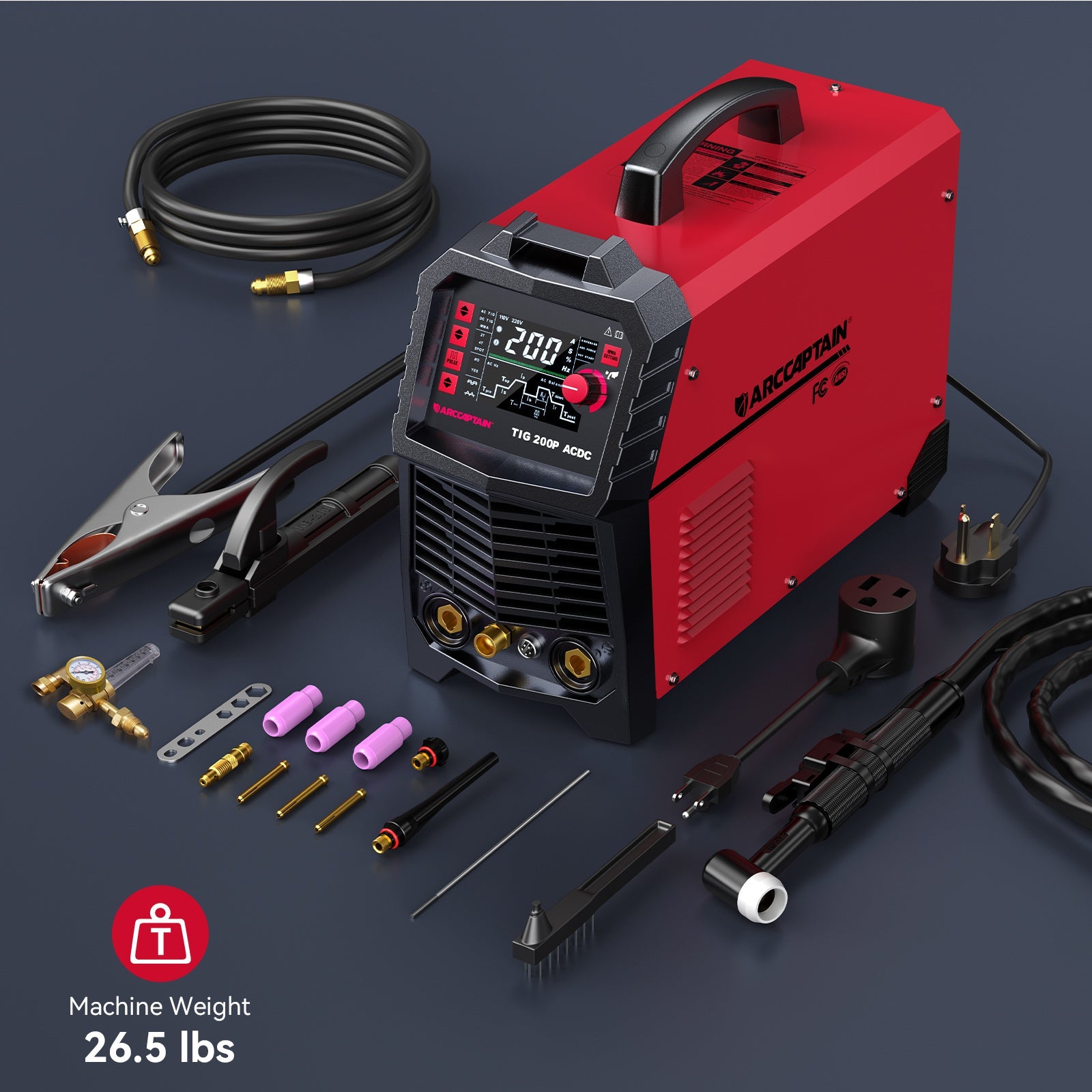

- Lightweight & portable: Just 26.5 lbs (12 kg) for jobsite mobility
- Large LED display with intuitive controls: Adjust pre-flow, slope timing, crater fill, and more in seconds

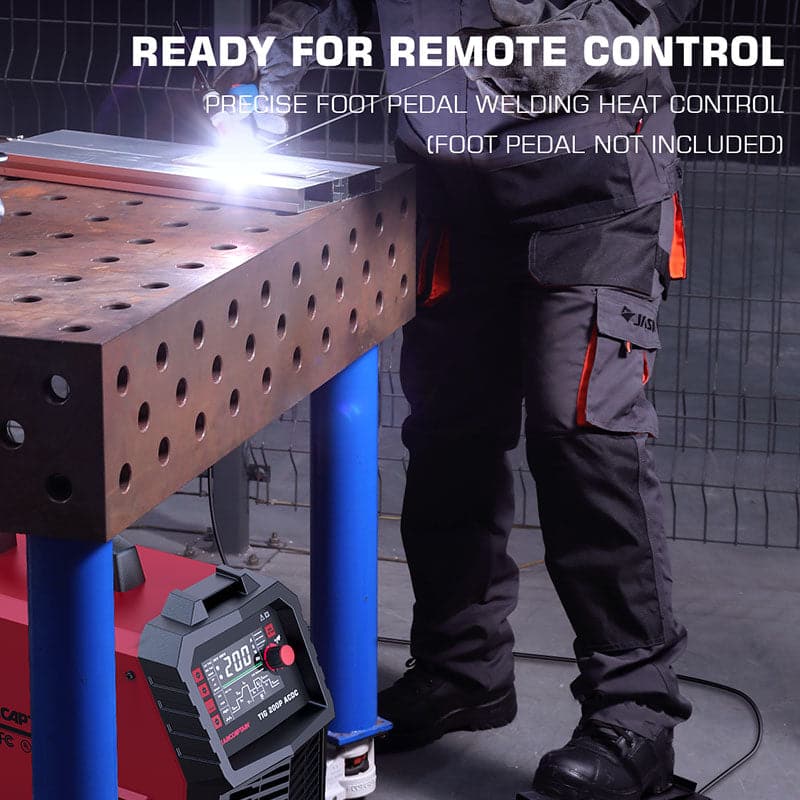

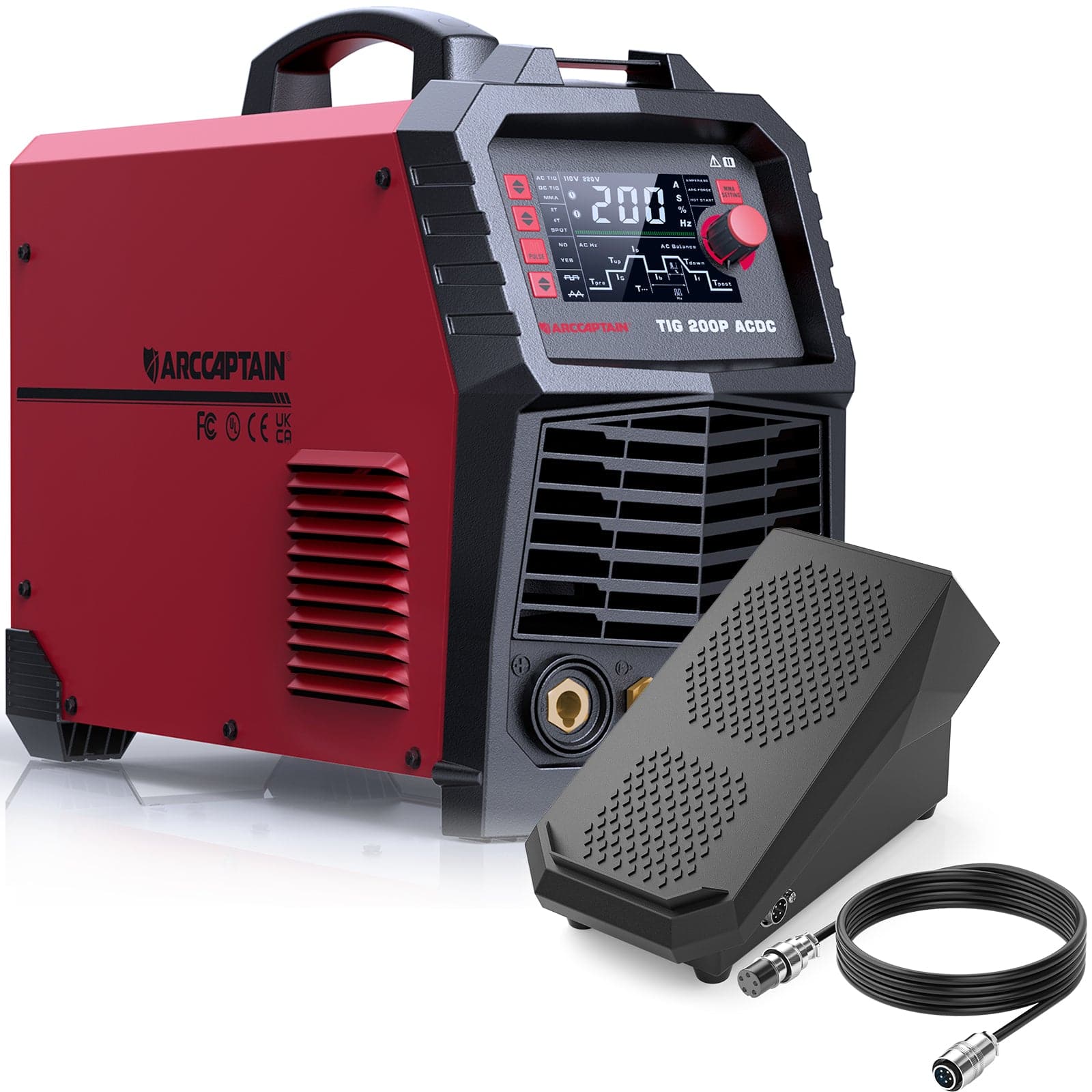

- Flexible control options: Use the handheld torch (2T/4T/spot modes) or add a foot pedal (sold separately)

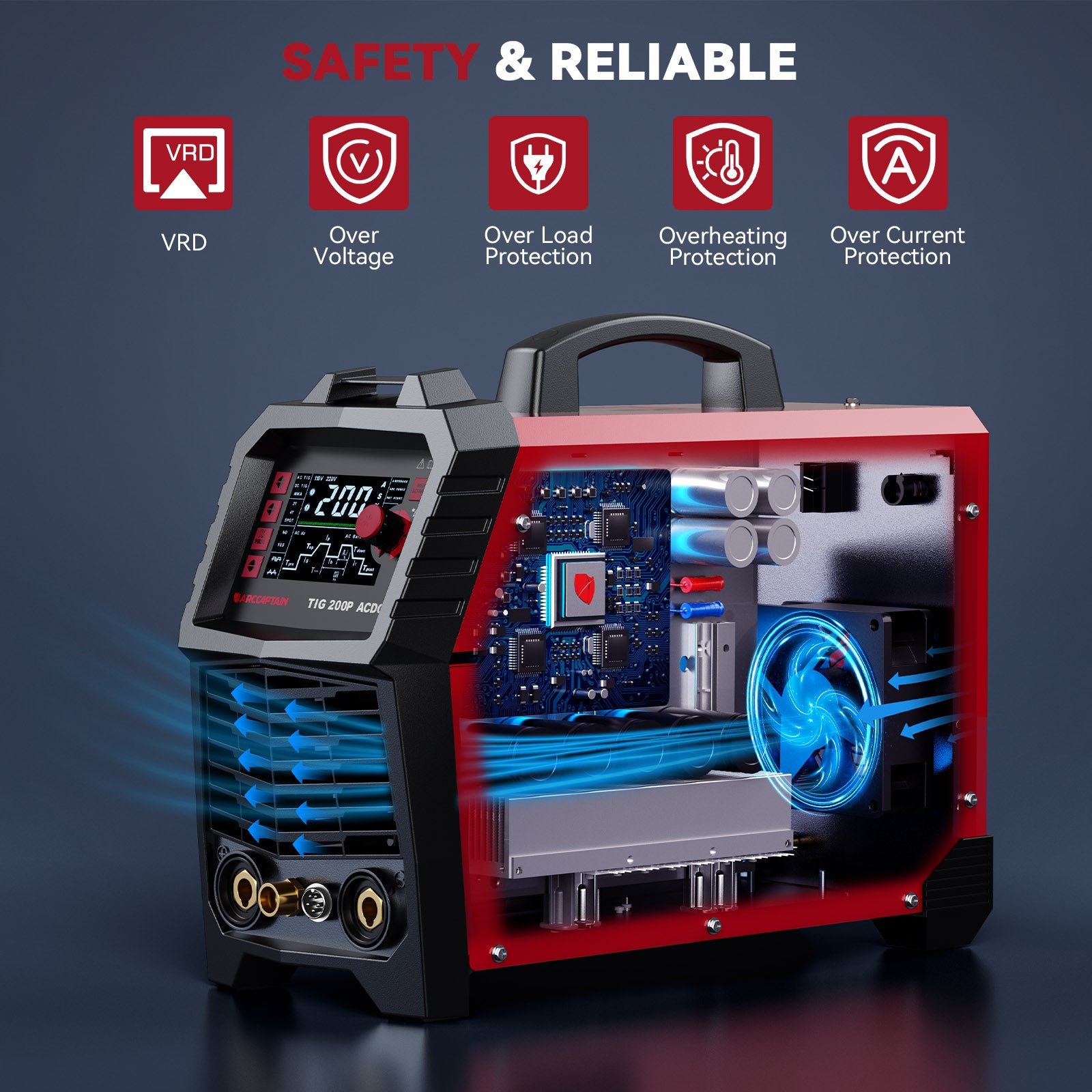

Safety You Can Trust
Auto-shutdown protection against overheating, voltage spikes, and overloads. VRD (Voltage Reduction Device) keeps you safe during electrode changes.
| Project Name | Unit | Value | ||
| Power voltage | VAC | AC110V±15% AC220V±15% | | |
| Input frequency | Hz | 50 | ||
| Rated input current | A | 33@TIG 35@MMA | ||
| Capacity of power supply | KVA | 6.0@TIG 7.5@MMA | ||
| Output current range (TIG) | A | 10~120(110 v) 10~200 (220v) | | |
| Output current range (MMA) | A | 10~110(110v) 10~160(220v) | | |
| Arc force range | A | 0~40 | ||
| Hot start current range | A | 0~80 | ||
| No-load voltage | V | 60 | ||
| Rated working voltage | V | 18@TIG 26.4@MMA | ||
| AC output frequency | Hz | 20~250 | ||
| AC balance | % | 20~60 | ||
| Background level | A | 10~200 | ||
| Pulse frequency | Hz | 0.5~200 (DC) 0.5~25(AC) | ||
| Pulse duty factor | % | 5~95 | ||
| Pre-flow time | S | 0~5 | ||
| Post-flow time | S | 0~15 | ||
| Rising time | S | 0~15 | ||
| Fall time | S | 0~15 | ||
| Remote control | - | Yes | ||
| Arc start mode | - | HF arc starter | ||
| Efficiency (%) | % | 80 | ||
| Duty cycle (%) | % | TIG: 200@25% - MMA: 160@25% | ||
| Power factor | - | 0.70 | ||
| Type of cooling | - | Air cooled | ||
| Working temperature range | °C | -10~+40 | ||
| Storage temperature range | °C | -25~+55 | ||
| Protection class | - | IP21S | ||
| Insulation class | - | B | ||
Features
36% increase in arc initiation efficiency
Multifunctional AC DC TIG welder
Packed with essential features, this machine excels at aluminum welding — outperforming comparable models by 36%.

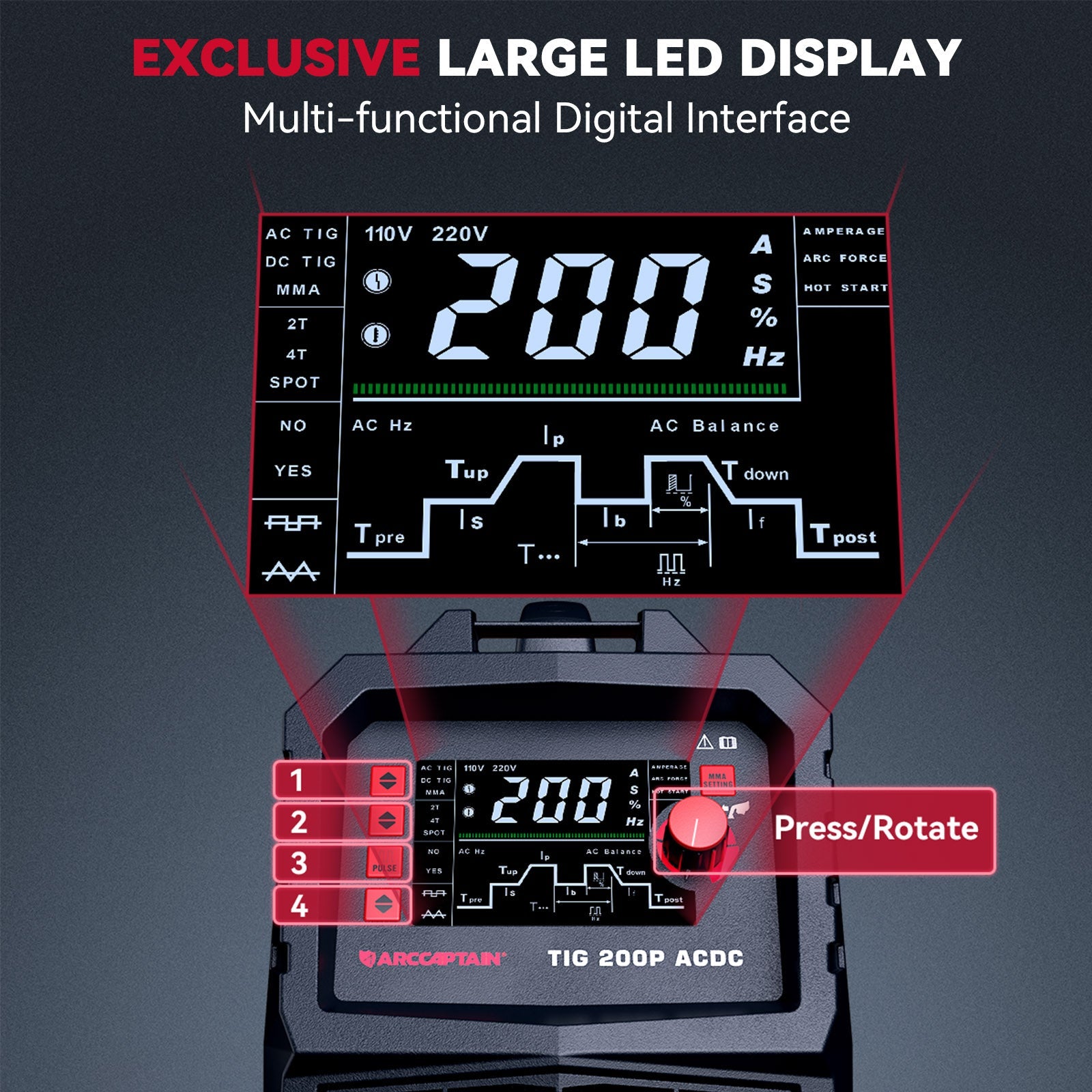

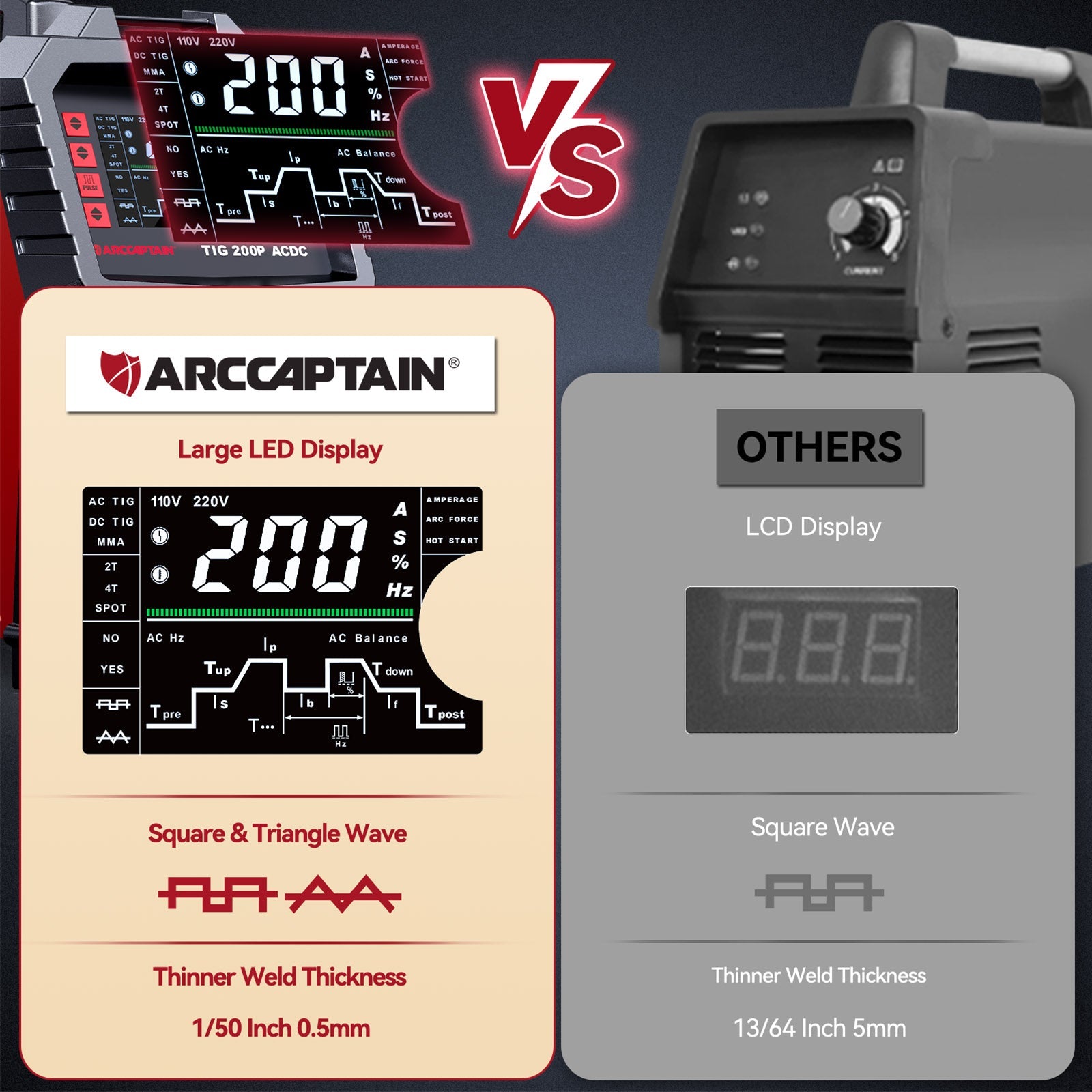

Large LED Display
Easily adjust settings for any welding mode. Get clear data without removing your helmet.
³/₆₄ inch to ¼ inch thickness
Capable of welding a variety of metal materials, it's a professional welder's tool of choice.
Frequently Asked Questions
Where is it shipped from?
Can it weld aluminum?
What types of metals can it weld?
What's the difference between AC and DC TIG?
DC TIG is used for steel, stainless steel, and copper.
The AC wave also cleans the oxide layer on aluminum, producing smoother and brighter welds.
What gas should I use for TIG welding?
• Aluminum: Pure Argon at approximately 15–20 CFH.
• Steel & Stainless Steel: The same pure Argon gas works perfectly.
What voltage does it work on?
What kind of tungsten should I use?
• 2% Zirconiated (White)
• 2% Lanthanated (Blue)
For Steel (DC):
• 2% Thoriated (Red)
• 2% Lanthanated (Blue)
How long is the warranty?
Wear parts and structural components are not covered.
Does it come with a foot pedal?
Does it have Pulse TIG? What is it for?
Pulse TIG provides greater control over heat input and arc stability, making it ideal for welding thin materials with precision. It helps improve weld appearance while reducing distortion and burn-through.
