Arccaptain

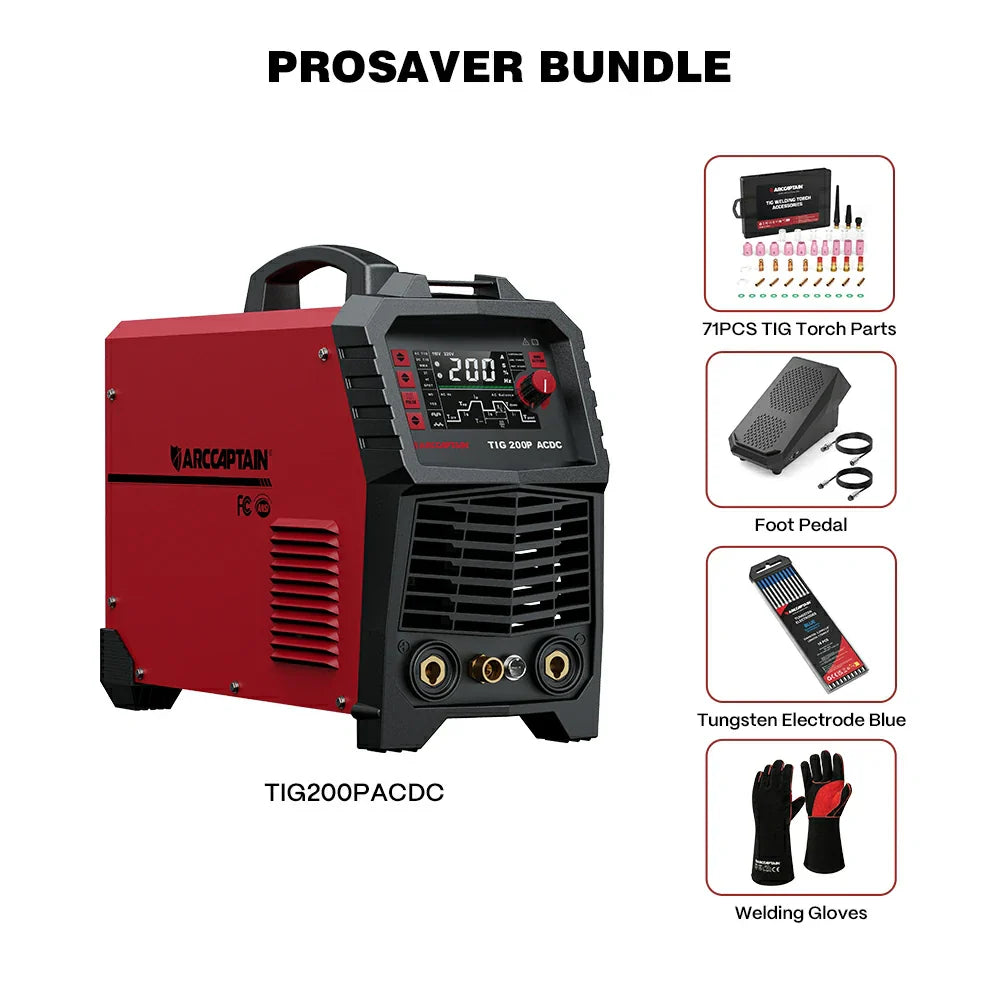

Arccaptain TIG200P AC DC TIG Welder ProSaver Bundle

$1,117.00 $800.00
SAVE $317.00 (28% OFF)
FLASH SALE SAVINGS
Sale ends in:
00 Days
:
00 Hrs
:
00 Mins
:
00 Secs
  • American Express
  • Apple Pay
  • Cartes Bancaires
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Welding effects demonstrated with different aluminum thicknesses




    Project Name

    Unit

    Value

    Power voltage

    VAC

    AC110V±15%

    AC220V±15%


    Input frequency

    Hz

    50

    Rated input current

    A

    33@TIG 35@MMA

    Capacity of power supply

    KVA

    6.0@TIG 7.5@MMA

    Output current range (TIG)

    A

    10~120(110 v)

    10~200 (220v)


    Output current range (MMA)

    A

    10~110(110v)

    10~160(220v)


    Arc force range

    A

    0~40

    Hot start current range

    A

    0~80

    No-load voltage

    V

    60

    Rated working voltage

    V

    18@TIG 26.4@MMA

    AC output frequency

    Hz

    20~250

    AC balance

    %

    20~60

    Background level

    A

    10~200

    Pulse frequency

    Hz

    0.5~200 (DC)

    0.5~25(AC)

    Pulse duty factor

    %

    5~95

    Pre-flow time

    S

    0~5

    Post-flow time

    S

    0~15

    Rising time

    S

    0~15

    Fall time

    S

    0~15

    Remote control

    -

    Yes

    Arc start mode

    -

    HF arc starter

    Efficiency (%)

    %

    80

    Duty cycle (%)

    %

    TIG: 200@25% -

    MMA: 160@25%

    Power factor

    -

    0.70

    Type of cooling

    -

    Air cooled

    Working temperature range

    °C

    -10~+40

    Storage temperature range

    °C

    -25~+55

    Protection class

    -

    IP21S

    Insulation class

    -

    B



    View full details

    Features

    TIG200P AC DC welder features

    36% increase in arc initiation efficiency

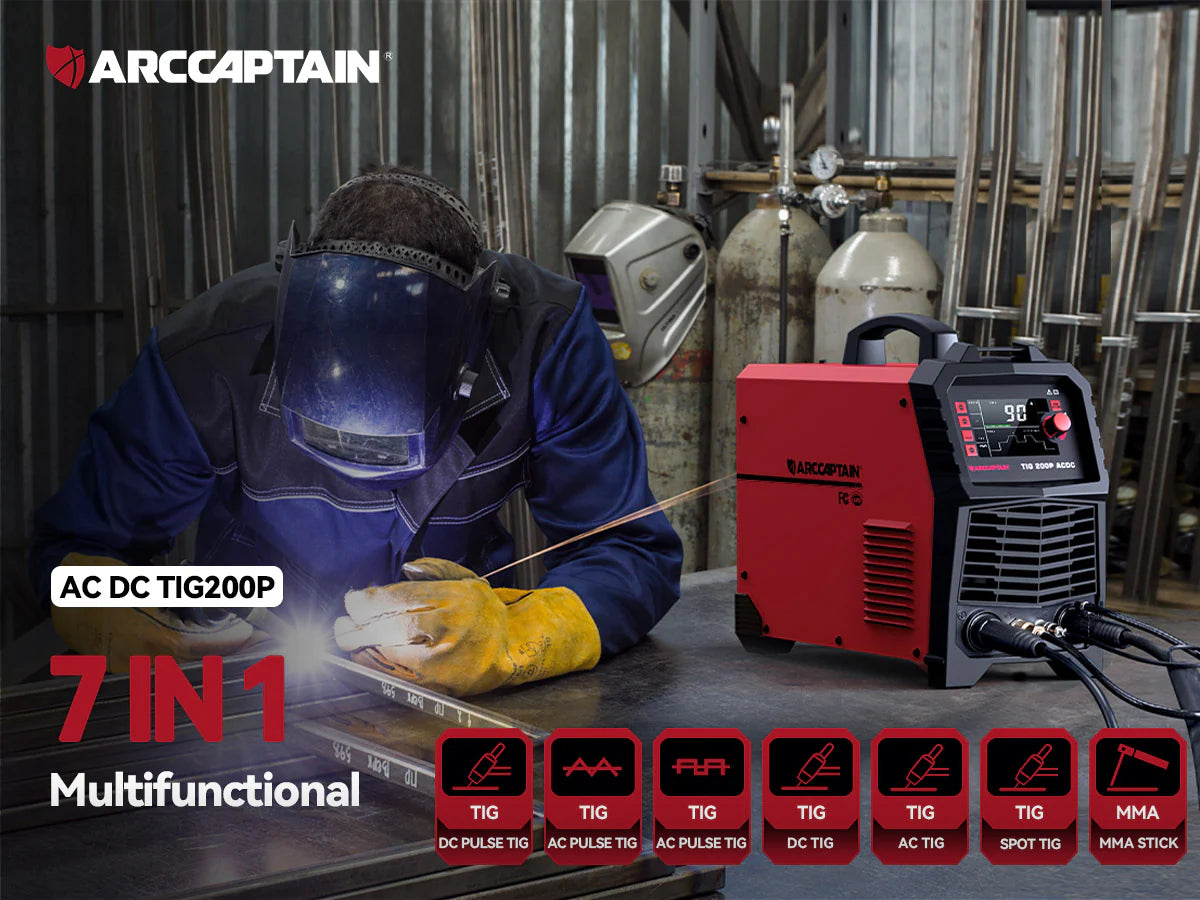

    Multifunctional AC DC TIG welder

    Packed with essential features, this machine excels at aluminum welding — outperforming comparable models by 36%.

    Button label

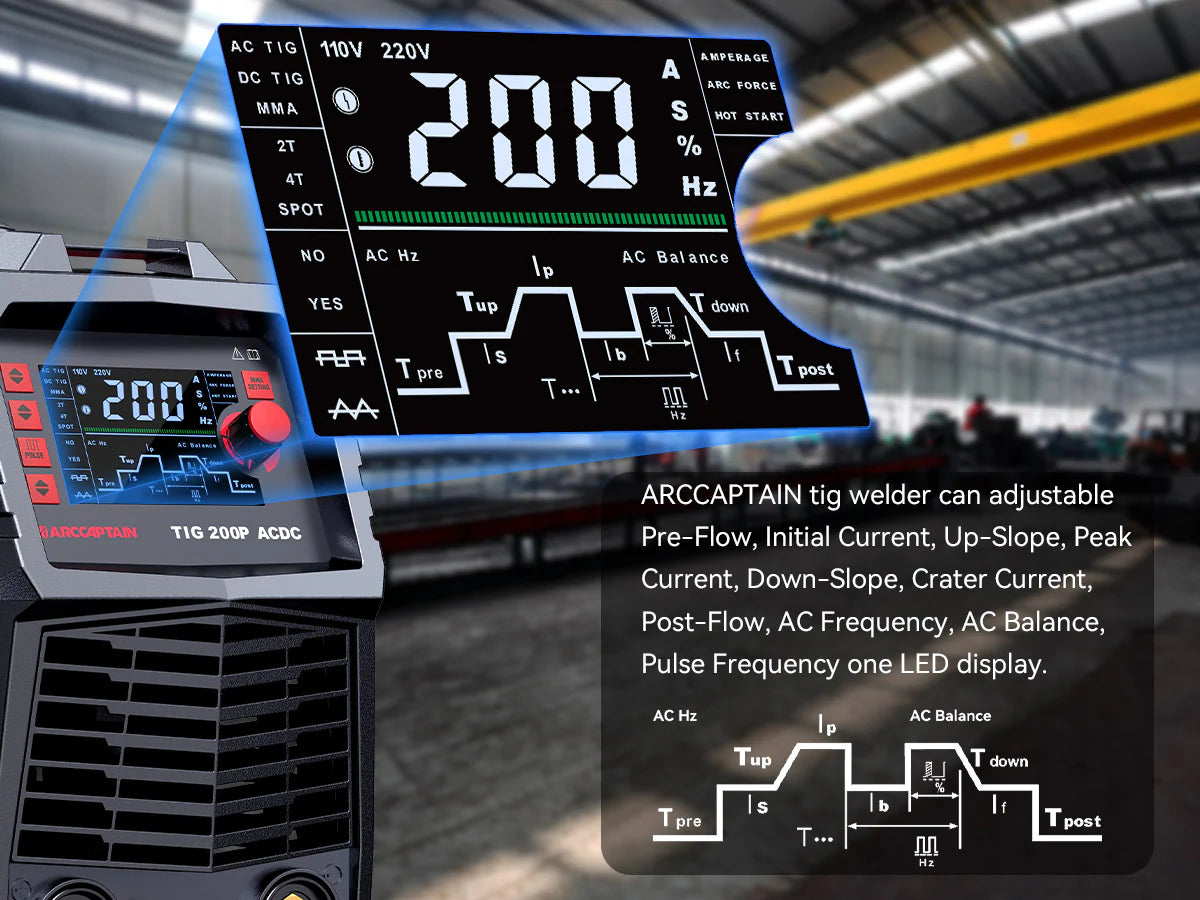

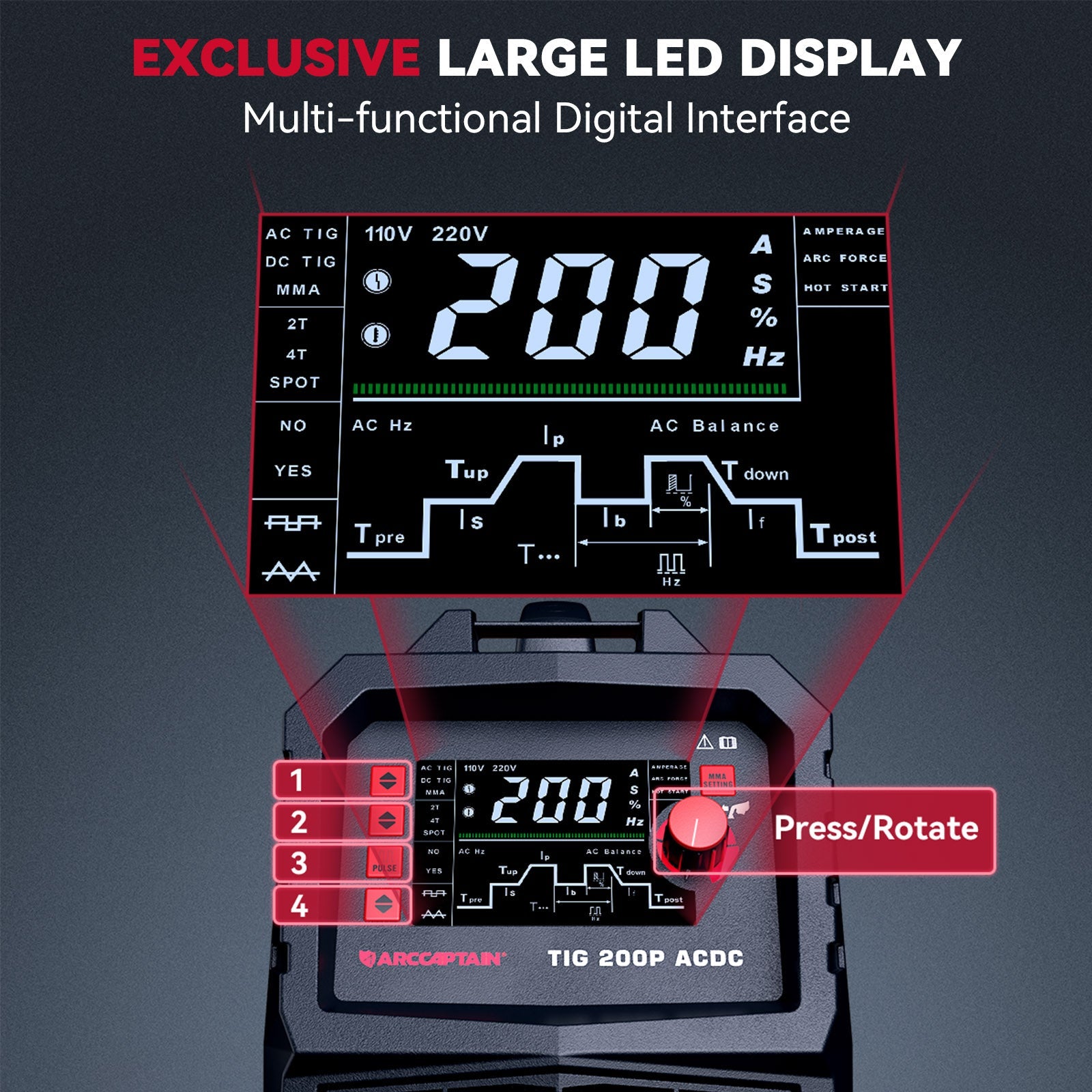

    Large LED Display

    Easily adjust settings for any welding mode. Get clear data without removing your helmet.

    Button label

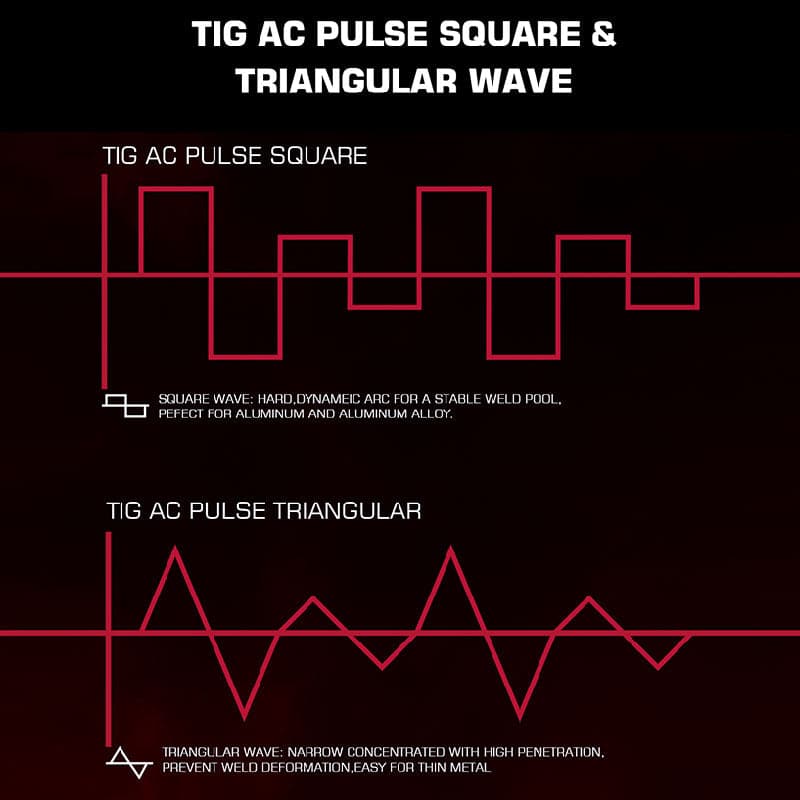

    AC DC PULSE WELDER

    Pulse function helps you weld thin plates more easily

    Button label

    ³/₆₄ inch to ¼ inch thickness

    Capable of welding a variety of metal materials, it's a professional welder's tool of choice.

    Button label

    TIG SPOT WELDING

    This ac dc TIG welder also features TIG spot welding capabilities.

    Button label

    Outstanding stick welding function

    Equipped with outstanding stick welding function.

    Button label

    Frequently Asked Questions

    Where is it shipped from?
    From local warehouses in the US and Canada, with fast and free delivery.
    Can it weld aluminum?
    Yes. TIG200P AC/DC supports AC TIG mode designed specifically for aluminum. It handles thin sheets (as low as 0.9 mm) and thick plates up to 6 mm with a stable arc and clean weld beads.
    What types of metals can it weld?
    Aluminum, stainless steel, mild steel, copper, and more. Use AC TIG for aluminum and DC TIG for steel, stainless steel, and copper.
    What's the difference between AC and DC TIG?
    AC TIG is used for aluminum and magnesium.

    DC TIG is used for steel, stainless steel, and copper.

    The AC wave also cleans the oxide layer on aluminum, producing smoother and brighter welds.
    What gas should I use for TIG welding?
    Use 100% Argon gas.

    • Aluminum: Pure Argon at approximately 15–20 CFH.
    • Steel & Stainless Steel: The same pure Argon gas works perfectly.
    What voltage does it work on?
    It supports Dual Voltage 110V / 220V, making it suitable for both home garages and professional workshops.
    What kind of tungsten should I use?
    For Aluminum (AC):
    • 2% Zirconiated (White)
    • 2% Lanthanated (Blue)

    For Steel (DC):
    • 2% Thoriated (Red)
    • 2% Lanthanated (Blue)
    How long is the warranty?
    The TIG200P AC/DC includes a 5-Year Warranty covering the machine's core electrical components from the original purchase date.

    Wear parts and structural components are not covered.
    Does it come with a foot pedal?
    No. The machine is compatible with a foot pedal, but the foot pedal is sold separately.
    Does it have Pulse TIG? What is it for?
    Yes.

    Pulse TIG provides greater control over heat input and arc stability, making it ideal for welding thin materials with precision. It helps improve weld appearance while reducing distortion and burn-through.
